Automatic coating production line

IR series curing furnace

National hotline18823787625

Details are introduced

1、Product features:

The track uses special stainless steel chain transportation, equipped with stainless steel baffle to extend the service life of the track;

Independently designed amplitude modulation mechanism, equipped with tightening device to prevent track trumpet mouth;

Equipped with brake lifting device, with power off maintenance function, convenient lamp maintenance;

The two ends of the equipment import and export are equipped with independent exhaust gas exhaust holes to prevent curing odor from being discharged into the workshop;

On and off the conveying track, the highest height of components can pass through the product ±100mm;

Equipped with alarm function of plate drop, plate drop in furnace, automatic sound and light alarm;

Track transportation speed, analog quantity control, touch screen setting, user-friendly operation;

It is equipped with protection and energy saving devices such as board drop detection, board number detection, automatic standby and so on.

2、Function matching:

Automatic return track, power off protection, voltage regulator, etc.

3、Technical parameters:

Equipment model	IR-03	IR-13	IR-23	IR-33
Installation dimensions	L=3000mm W=1150mm H=1155mm
The control mode	Touch screen + PLC
Conveying height	900 + 20 mm
Conveying track length	3000mm
Transportation way	Special aluminum alloy track + stainless steel chain
Length of single zone heating zone	Infrared lamp: 550mm
Transportation speed	0.1 4 m/min
PCB size	50-460 - mm single block
Conveyor motor	120W (with gearbox) single-phase 220V
Heating up time	10min
Temperature control precision	± 5 ℃
The power supply voltage	Power supply 380V, three-phase five-wire system
Working direction	Left to right (standard) Right to left
Temperature range	Room temperature -120℃ (adjustable within range)
standard function	Electric lifting of upper cover
	Conveying speed monitoring
	Conveyor drop plate detection
	Transportation fault detection
	Test the number of plates in furnace
	Detection of upper cover switch
	Set the stoppage timeout time
	Find the board interval time setting
	Standby time setting
	Historical alarm record
	Equipment output statistics
Temperature zone configuration	On the heating	Upper heating + upper orbit lower heating	Upper heating + return plate line heating	Upper heating + upper rail heating + return plate line heating
The total power	10KW	19KW	19KW	28KW
Optional features	Back plate line	Back plate line	/	/
	UPS
	Voltage regulator

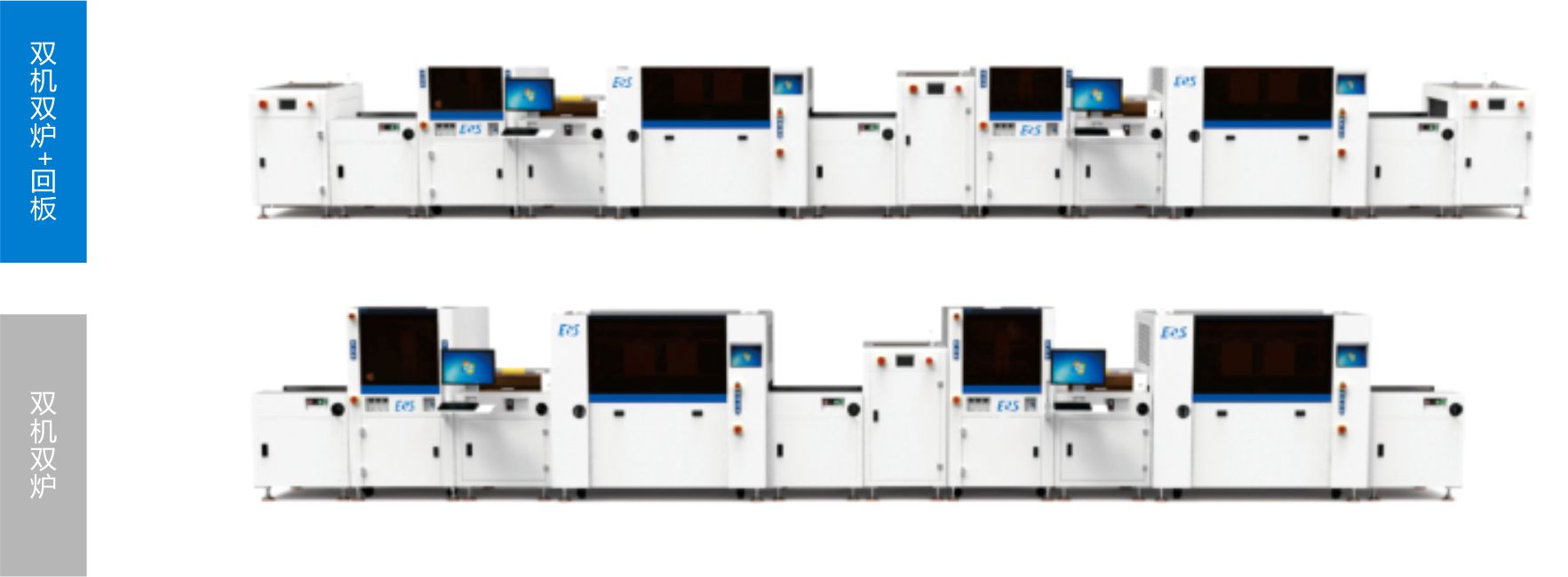

4、Combination scheme of automatic coating production line:
