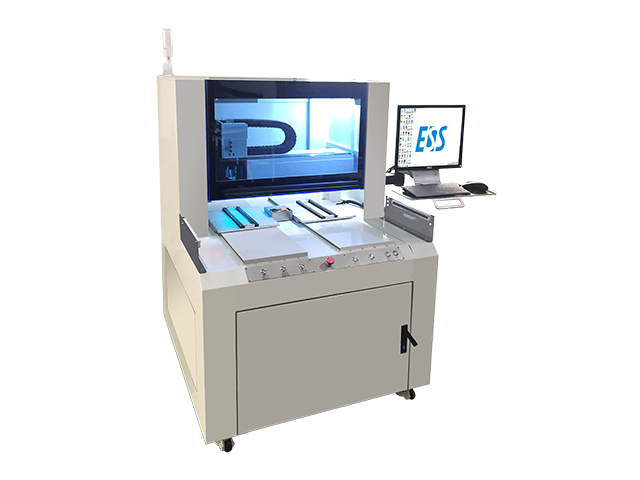

Offline precision series dispensing machine

TS-05D

National hotline18823787625

1、Suitable for high speed precision dispensing process:

Chip packaging, filling, encapsulation

PCB/FPC mounting, reinforcing, packing, filling

Camera/fingerprint, module precision dispensing

Mobile phone narrow frame and other precision assembly, fitting

2、Product advantages:

X and Y adopt linear motor module. High speed, high precision, no wear. Free maintenance

Precision motion control. Path autonomous optimization

Visual image recognition. Autonomous compensation

Patent control software. Powerful control and management functions

Online visual programming or offline file import. Simple and efficient

3、Technical specifications:

model	TS-05D	model	TS-05D
Dispensing area	300300.300300mm	man-machine interface	Chinese/English
Platform speed	800mm/s (intelligent optimization control)	whole machine size	L1060W1230H1500mm
XY repetition accuracy	0.0055mm (linear motor module)	weight	662kg
Kinematic positioning accuracy	0.01mm (high precision grating/chord shed)	Call the police	Sound and light alarm
Machine vision	Image detection and self-compensation	input voltage	220V 50~60Hz
Accuracy of height measurement	0.01mm (optional)	Air pressure	0.6Mpa
operating system	Windows7	total power	3kw
